PI series, that works with the intermittent motion system, reaches the maximum possible speeds by using servo-motion technology. Thanks to its modular structure, the PI series adapts to the changes in the market with accessories and apparatus and performs various package types with simple settings.
- General Features
- Technical Features
- Optional Equipment
- Optional Equipment
- Filling Units
- Products
- Package Types
- Video
- Get Offer
Intermittent motion working system |

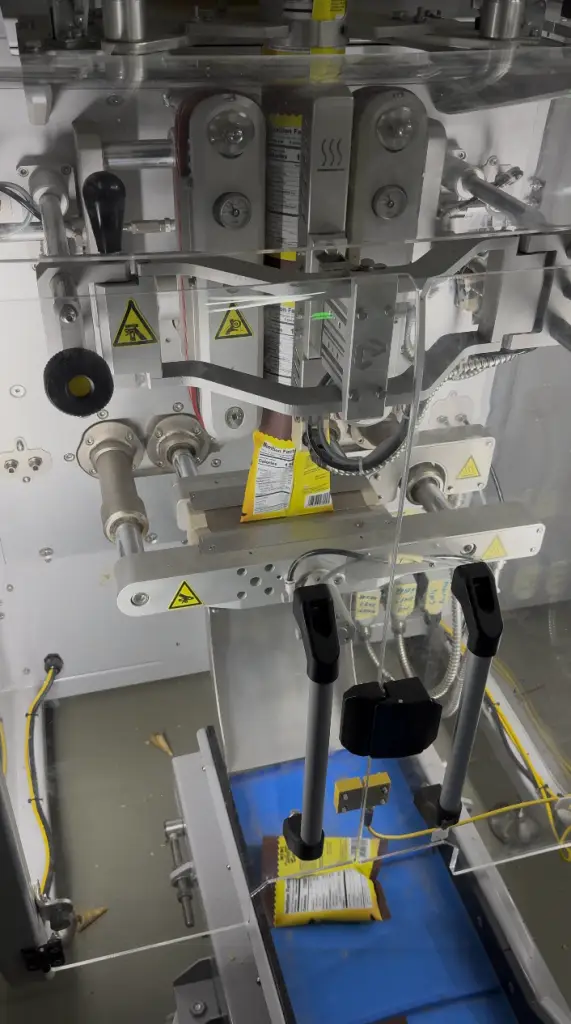

Homogeneous vertical and horizontal sealing with P.I.D heat control system |
12” LCD color touch screen |
Management of all functions with motion controller system |
All main movements are performed by independent servo motors |
Ability to work with or without photocell |

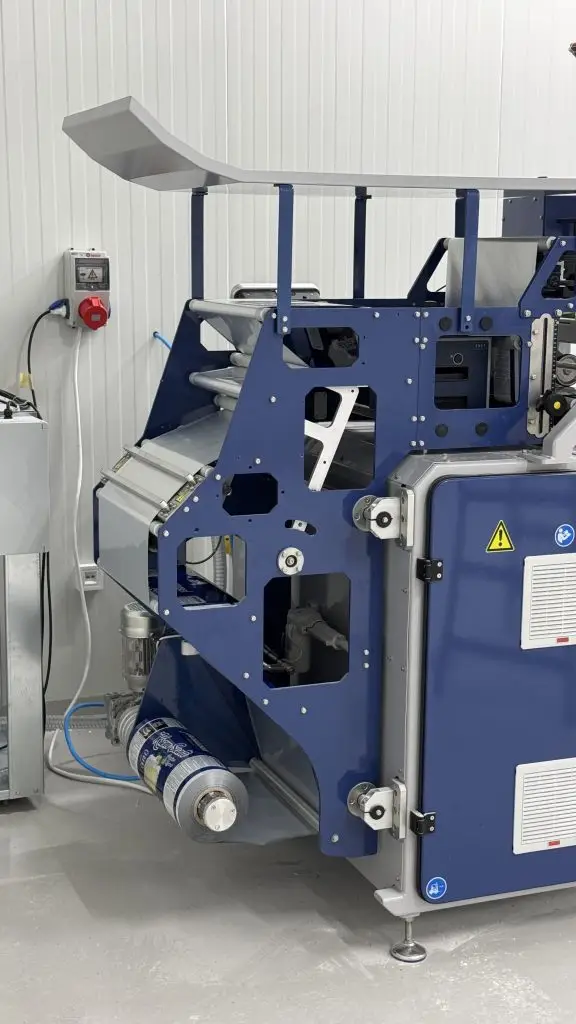

Easy bobbin change with automatic film insertion unit |
With the “film is end sensor”, the machine stops automatically when the film is finished |
Compatibility with different types of filling systems: Volumetric and Auger Filling, Linear and Multi-head Scale, Various Piston Liquid Dosing |
Packaging materials: PP, PE, all laminated films, barrier film, water-soluble film, etc. |
Suitable for various package types: Pillow package, körüklü paket, oturan paket, kenarı çizik paket ve sıralı dizi paket |
All surfaces that in contact with the product are ANSI 304 stainless steel |
All aluminum parts are anodized coated |
Rounded surfaces that do not accumulate bacteria |
Due to any error related to the safety violation, the machine automatically stops, and the error is read from the screen |
Conforms to CE standards |
Mechanical speed | Max. 100 pkg/min |
Film width | Max. 550 mm |
Outer diameter | Max. Ø500 mm |
In-hole diameter | Ø76 mm (Ø152 mm*) |
Weight | Max. 25-30 kg |
Power supply | AC-380V (+/-%5), 3P+N+PE, 50Hz (60Hz**), 3kW |
Working Conditions
Heat | 5- 45 °C | |
Humidity | ≤80% | |
Sound level | ≤ 80 db | |
Electrical panel safety level | IP54 | |
Min. machine safety level | IP21 | |
Air requirement | 100 l/min *- min. 6 Bar | |
Weight | ~ 750 kg * | |
Machine dimensions | Width | 1250 mm |
Depth | 1750 mm | |
Height | 1675 mm |
Nitrogen gas blowing system* |
Electrical panel with air conditioning* |
Industrial PC for remote access* |
Static receiver* |
Barcode application* |
Vacuum application of film pull belts* |
Film in continuous axis with auto-film centering system* |
Homogeneous tension control with auto-film warping system * |
Automatic bobbin change application* |
